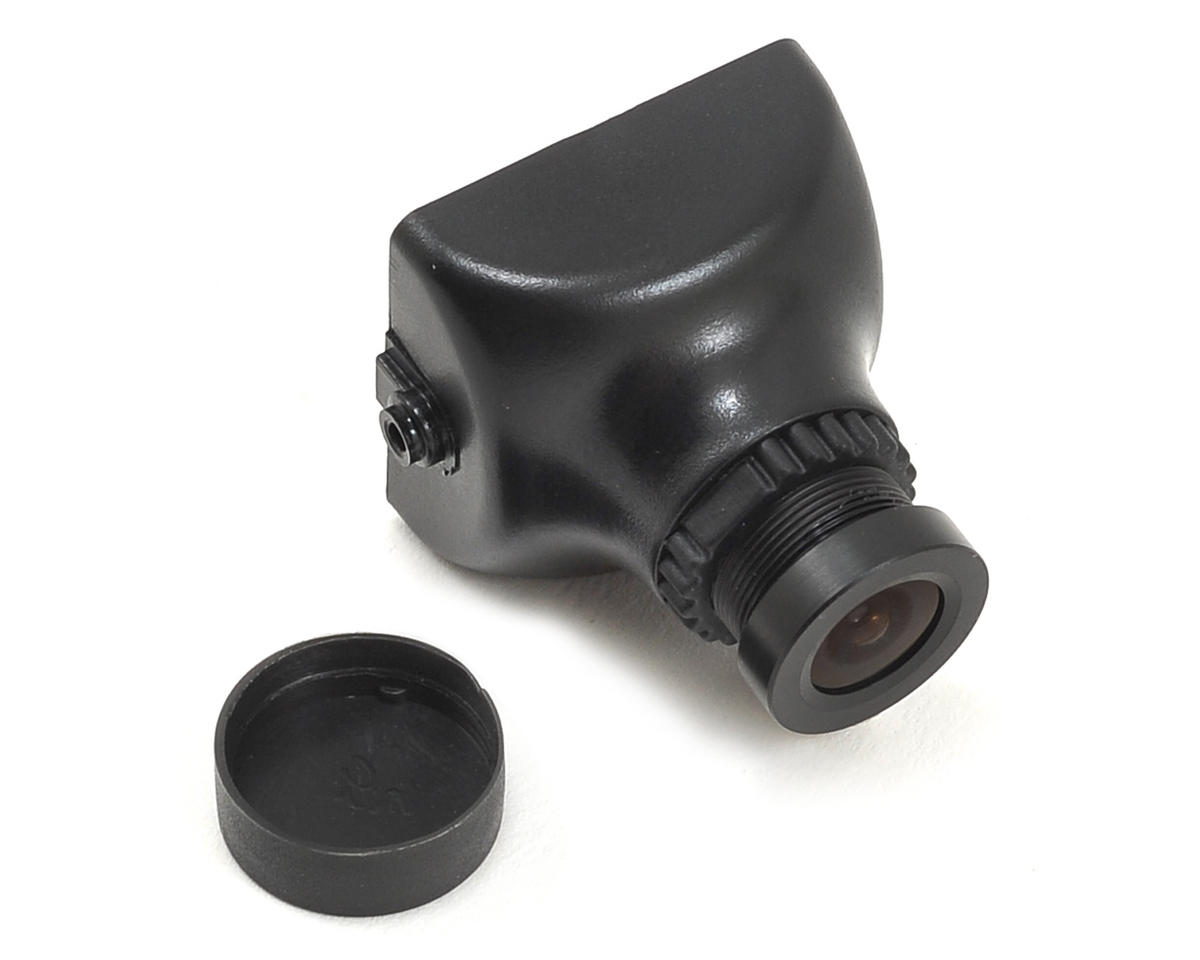

700TVL 2.8mm 1/4 Wide Angle FPV Camera


Categories: , Tags: , ,


700TVL 2.8mm 1/4 Wide Angle FPV Camera


This is a great little camera with a smaller footprint. With a 2.8mm lens, CMOS sensor and DC12V you won’t be missing the action.

Resolution: 700TVL
Camera size: 25mm*25mm
Format: PAL / NTSC
Lens: Wide-angle 2.8mm (90degree)
Power input: DC 12V
Output: 12V

Image sensor: 1/4 CMOS image sensor
System standard: PAL/NTSC PAL ( H X V ):512X 582 NTSC ( H X V ):542 X 492
Electronic Shutter: PAL= 1/50 – 1/100,000 second  NTSCL= 1/60 – 1/120,000 second
Minimum illumination: 0.1Lux (F: 1.2)
SNR: > 48dB (AGC Close)
Gamma: 0.45
Automatic Gain: On / Off
Auto White Balance: On / Off
Lens Mount: C / CS
Video output: 1 Vp-p, 75Ω
Operating temperature range: -10 ℃ to 50 ℃ (maximum humidity 95%)
