FrSky M9 Hall Sensor Gimbals Pair for Taranis X9D & X9D Plus

The FrSky M9 Hall Sensor wont wear out quickly or easily. It has an extremely smooth feel with the quad ball-bearings and the metal outer construction.

WATCH HERE TO SEE HOW EASY IT IS TO UPGRADE:

$70.00

Out of stock

Compare

Description

Description:

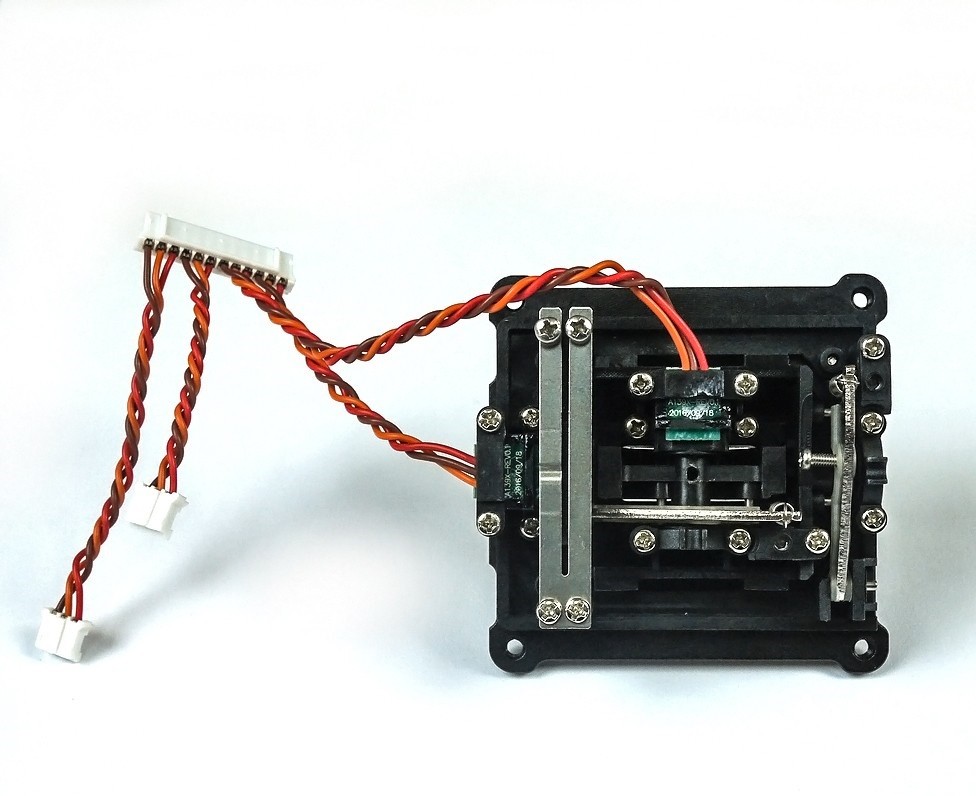

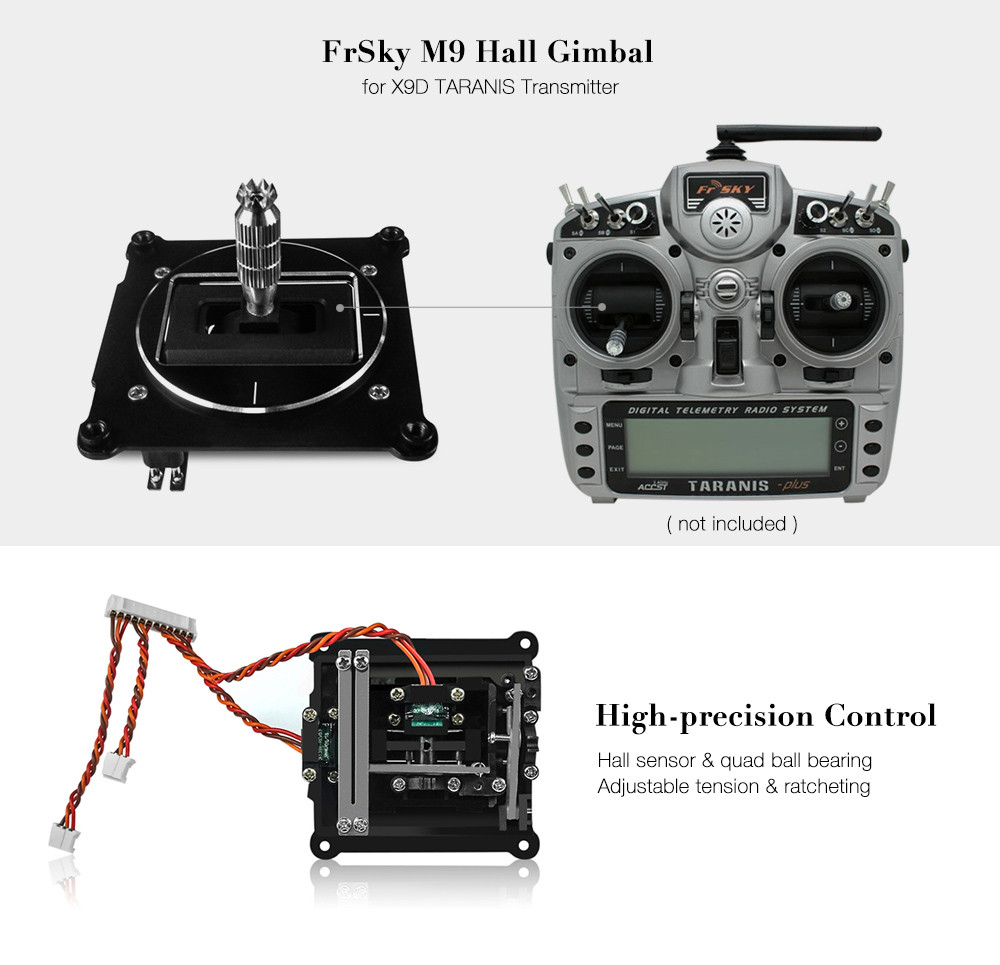

Upgrade your Taranis X9D with this plug-n-play high resolution set of two M9 Gimbals from FrSky. The highly sensitive Hall sensors will not wear out quickly. It has an extremely smooth feel with the quad ball-bearings and the metal outer construction. Thicker 4mm stick ends give you a solid link to your controls. Fully adjustable tension and easily disable the self centering axis with one screw. This is a must have accessory for achieving those precision flight maneuvers.

Features:

  •  Hall sensor
  •  4 ball-bearings
  •  Adjustable tension
  • Can be enable or disable self centering on both axis and ratcheting on the Y axis
  • Special material quality that wears well

Specifications:

  • Supply Voltage (VCC): DC 3.0 ~ ±0.5V
  •  Sensitivity: 2.50 mV/G
  •  Linear Output Voltage Range:
  •  0.1   ~ ( VCC +0.1) V
  •  Quiescent Output (TA = 25°C, B = 0 G): 0.5 × VCC
  •  Noise (no load): ≤40mVpp

Includes:

  • Two M9 Gimbals in box
