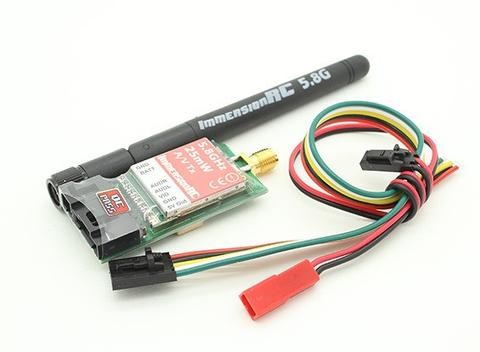

ImmersionRC 5.8GHz 25mW Video Transmitter

ImmersionRC introduces their new 5.8GHz 25mW video transmitter, a CE certified NexwaveRF powered video link.

Australian regulations place a limit of 25mW on 5.8GHz video transmitters. The 25mW version of this compact transmitter complies with these regulations, but yet retains all the great features and innovative technologies used by ImmersionRC’s higher powered versions.

Combine this CE-legal 25mW transmitter with a 13dBi Circularly Polarized patch antenna, and achieve multi-km video link range with ease. Traditional robust ImmersionRC design, with plug and fly simplicity.

The ImmersionRC 25mW transmitter is based on the super stable 5.8GHz NexwaveRF band making it Fatshark compatible. It also has a dedicated 5v output for the FPV camera matched with the standardized 5 pin connector, which makes it plug-and-play compatible with most systems. These features make this one of the best all-around CE certified FPV transmitters available.





• 25mW transmitting power (others available by request)

• NexwaveRF based

• 5V output for FPV camera • Small Size

• SMA Antenna Connector

• Onboard quiet switching regulator, powers 5v cameras

• Not affected by 2.4GHz R/C radios!

Specs: RF Module: NexwaveRF  Power supply: 7 – 12V (2S-3S supply)  Power out (to camera): 5V, 350mA max  Transmitting power: 25mW  Operating Frequency: 5.8GHz (5740, 5760, 5780, 5800, 5820, 5840, 5860Ghz) Dimensions: 50 X 23 X 12 mm  Weight: 22g (with dipole antenna)

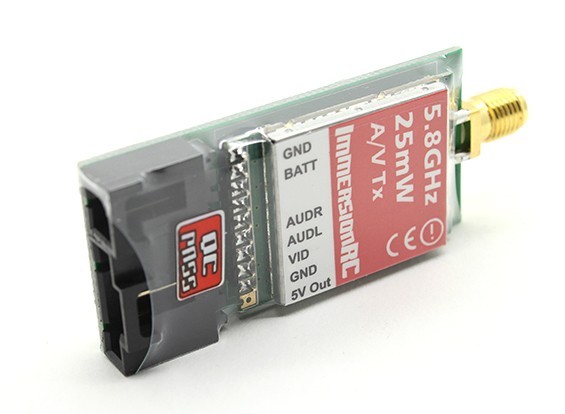

Note: White connector on the back of the transmitter is for connecting an ImmersionRC TinyTelemetry accessory. (adds Telemetry data to the audio channel for Antenna tracking)
