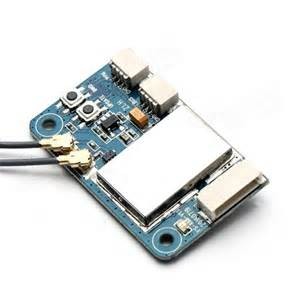

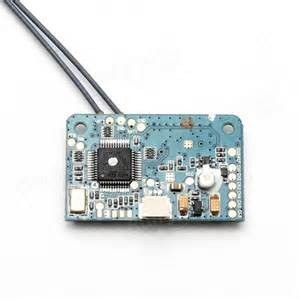

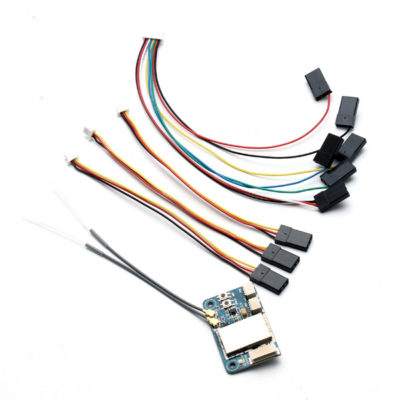

FlySky X6B PPM / i-BUS 2.4GHz 6CH Receiver

FS-X6B is a 6 channel two-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol and dual omnidirectional antenna with superior noise reduction techniques. It’s compact, easy to install and boasts a rich easy to use interface. The FS-X6B support 6 channel PWM output, standard PPM output and i-BUS support for up to 18 channels alongside a reliable voltage sensor interface.

This receiver is compatible with the Turnigy Evolution Radio.

Channels: 6(PWM), 8(PPM), 18(i-BUS)
Model Type: Multi-Rotor
RF Range: 2.408-2.475 GHz
Brand Wigth: 500KHz
Number of bands: 135
RF Power: No more than 20 dBm
RX Sensitivity: -95dBm
2.4GHz protocol: AFHDS 2A
Modulation Type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM/PWM/i-BUS
Antenna Length: 93mm (Dual Antenna)
Power input: 4.0-8.4V
On-line Update: Yes(Wireless)
Range: >300m
Weight: 4.5g
Size: 36*22*7.5mm
i-BUS Port: Yes
Certificate: CE0678, FCC ID: N4ZX6B00
Compatible Transmitter: All AFHDS 2A Transmitter, for example FS-i10 FS-i6,FS-i6S, FS-i6X, FS-i4, FS-i4X, Evolution.

$30.00

Quantity
Compare

Description

Flysky X6B PPM / iBus receiver
