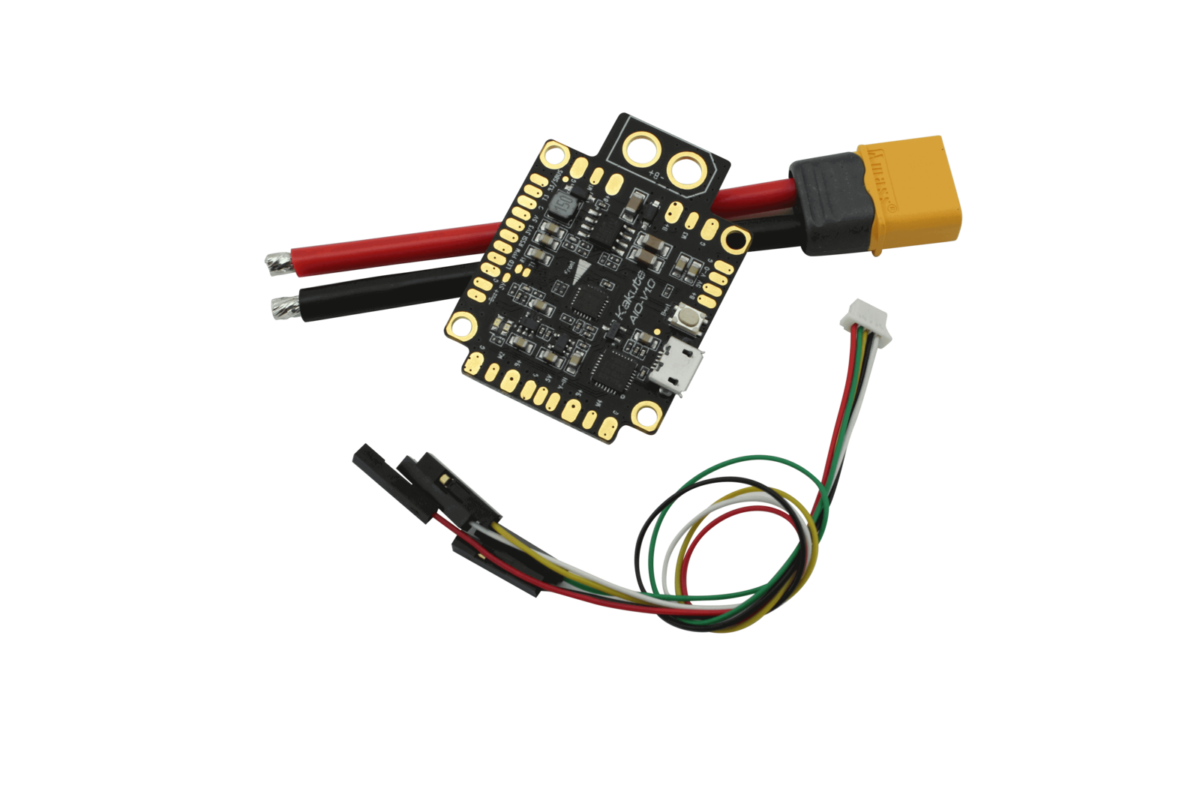

HolyBro Kakute AIO v1.0

This is the ultimate in all in one flight controllers. Its got FC, OSD, PDB all integrated and makes it the most simple and easiest way to build your drone. Only one VTX module is needed. With a minim OSD integrated; MWOSD Firmware preloaded; OSD Config port available; OSD interface highly customizable according to you own needs.

2 oz Copper PCB ensures the 120A Maximum Continuous Current.Dedicated Boot button for easy firmware flashing.Reinforced solder pads for trouble-free direct soldering.Extremely low profile design.

Input voltage 7v to 42v. Power the board directly from flight pack up to 6S (on ‘BAT’ pad only!).PDB Maximum Continuous Current 120A.VIN + VBAT merged – A single wire to power the board will provide voltage input and Telemetry/OSD voltage data.Filtered voltage output – output 5v 800mA (and 3.3v 150mA where applicable) to power peripherals such as GPS, RX, BLACKBOX. 5v/3.3v RX selectable.

BLHeli flashing supported by hardware. Cleanflight, Raceflight and Betaflight ready.

Specifications

STM32F303CCT6(256kB flash) 32-bit processor

MPU6050 Gyro/Accelerometer

ATmega328P with Arduino Bootloader(minim OSD)

MAX7456 Monochrome On-Screen Display(minim OSD)

FTDI Cable Compatible Pinout(minim OSD)

High quality, gold plated PCB

Micro USB connector for programming

Dimensions: 36×47.5x7mm (includes USB in height)

Mounting Holes: 30.5mm square to center of holes

Weight: 7g

(5176)

$55.00
