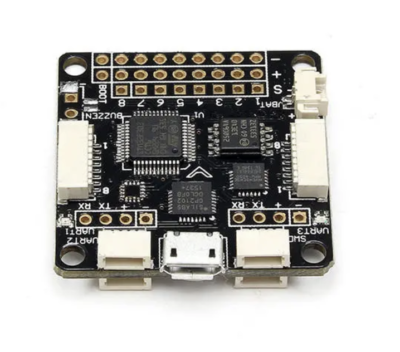

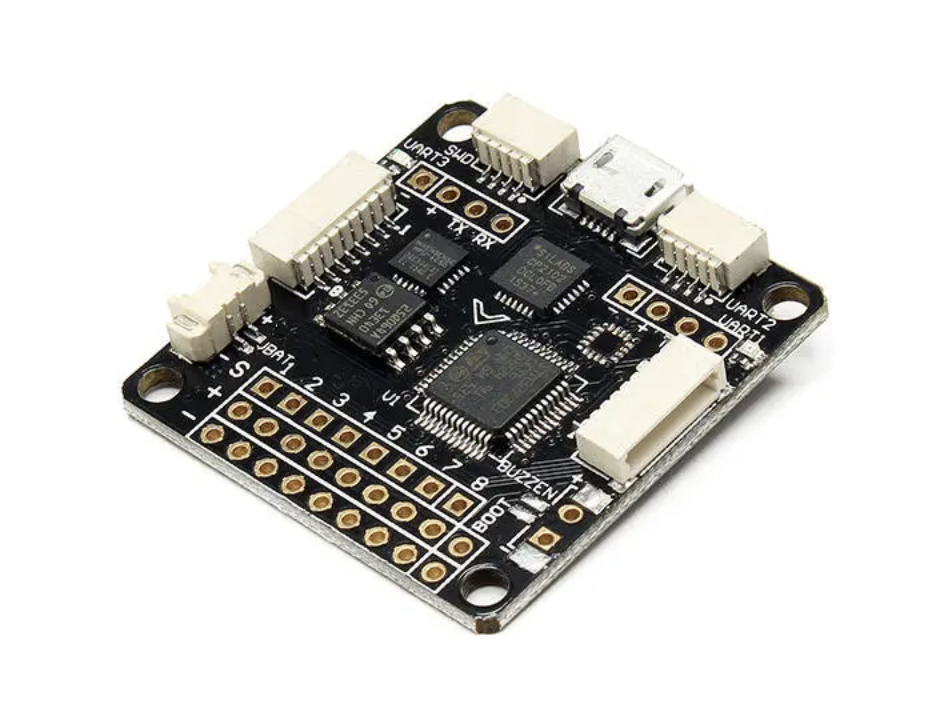

Item Name: F3 Flight Controller Acro model
Version: Acro 6DOF no compass/barometer
*35x35mm board, 30mm mounting holes.
* STM32F3 CPU.
* High-capacity Flash (Acro 6DOF)
* MPU6050 Accelerometers and Gyroscopes
* MicroUSB socket.
* 4 x 4 pin JST-SH Socket (I2C, SWD, 2xuart)
* 2 x 8 pin JST-SH Socket (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
* 8 x 3 pin though-holes for pin headers for ESC / Servo connections.
* 2 x 4 pin though-holes for the 2x serial ports .
* 2 x 2 pin though-holes for battery voltage and buzzer.
USER MANUAL here
Acro 6DOF Version
1 x F3 Flight Controller
2 x 8p Wire Rod
2 x 4p Extension Path
5 x Pins set
