STM32 F303 processor
Size: 2mm x 26mm
Weight: 3 grams
Work voltage: 3.7v-5v / 1S Lipo battery input
Firmware Version: Cleanflight 1.13.0
Receiver options (choose from):
8CH Frsky protocol SBUS output D8 Mode;
6CH Flysky protocol PPM output; or
6CH DSM2 protocol PPM output
1.The world’s first F3_EVO controller compatible for Frsky/Flysky/DSM2 (Optional).
2.Cleanflight ready, born for acro flight controller for the BeeDuctrix / Tiny Whoop / Inductrix / Eachine E010 quad!
3.Full Cleanflight/Betaflight compatibility on a STM32 F303 F3_EVO 3×1 style processor.
4.Fully programmable through Cleanflight / Betalfight using the onboard USB port! Tune all the parameters, PID’s, and rates to your perfect settings!
5.High discharge battery connector wire for more power and performance.
6.Can fly your Inductrix style quad in full rate mode (or even air mode!), fully execute flips/ rolls, and shoot the smallest of gaps with precision! Tuned to give you that locked in feeling you get with standard race quads.
Compatible (either of):
1.Frsky Receiver Support FRSKY X9D/X9D PLUS(D8 mode),and XJT (D8 Mode),DJT DFT DHT Transmitter.
2.Flysky Receiver Support FS-I6, Echine I6, TH9X, DEVO 7E with A7105 Module series Transmitter.
3.DSM2 Receiver Support Spektrum/JR(DSM2 protocol) DEVO10/DEVO 7E(with deviation firmware).
1 x Beecore F3 ACRO Flight Control Board (choose which radio compatibility)
Out of stockCompare

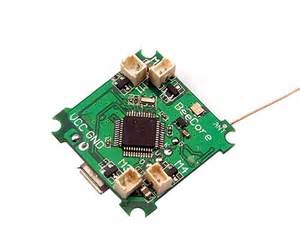

Introducing the Becore F3 EVO flight controller that can make your Inductrix (or Eachine E010) fly with Cleanflight or Betaflight. This FC is a direct replacement and screws down with the same stock hardware. Offered in 3 versions compatible with either Spektrum (DSM2/DSMX), Taranis Frsky or Fly Sky radio transmitters. Take your Micro quadcopter to a whole new level of acrobatics flying with the easy to install Beecore F3 EVO Flight Controller.
1.NO FIRMWARE FLASHED – You must flash your own firmware weather its cleanflight or betaflight using the boot pads.
2. CLEANFLIGHT FLASHED
3. BETAFLIGHT FLASHED
Compatible Radio Protocols:
DSM2/DSMX / FRSKY / FLYSKY
