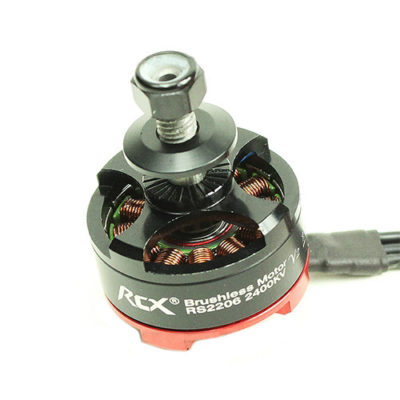

RCX SE2205 2400KV Racing Motor (Japan EZO Bearing / N52H Arc Magnet) (Copy)

This is the upgraded version from the previous successful H2205 motor. SE2205 Motor uses Strong Magnets, Imported Copper Wire, High Quality Bearings and 7075 CNC Material.

It assembled with Imported NMB Bearing and Copper Wire to maintain the quality. The motor has been balanced by Motion Balancing Machine so you will see the colored balancing mud in the motor.

There are lots of brands who claimed their motors are balanced but in fact it is only static balanced (this means just to filter the highly imbalanced CNC out), its balancing quality is far away from real Dynamic Balancing. If you do not see the balancing mud inside almost all motors, that means their “balanced” word is inaccurate.

Dynamic balancing is the most time consuming part when manufacturing a motor so factories don’t like to balance the motors due to the longer production times to manufacturer and finish these motors.





$25.00 $20.00

Quantity
Compare
Categories: , Tags: , , ,

Description

Specification:

  • Model: SE2205 V2
  • KV: 2400KV
  • Weight: Approx. 28.6g (net weight included long AWG cables)
    • you can lower the weight if you shorten the long AWG cables.
  • AWG Cable: 15cm (long enough)
  • Prop Shaft Diameter: 5mm (CW)
  • Stator Diameter: 22mm
  • Stator Length: 5mm
  • Shaft Diameter: 3mm
  • Configuration: 12N14P
  • Motor Dimensions: Φ26.8×15.3mm
  • ldle Current: 0.00A @ 10V
  • Internal Resistance: 0.00Ω
  • Suitable ESC: 25-40A (depends on the propeller and battery you use)
    • HobbyWing’s XRotor works pretty well with SE2205 V2 motor so it is recommended especially the XRotor 30A is small in size as small as some 10A-12A ESC.
    • Since SimonK and BLHeli might shutter during high RPM on small props (eg. 5030). So if you plan to drive the motor hard, please consider to get XRotor 30 because XRotor was tested at high RPM without any sync issue.

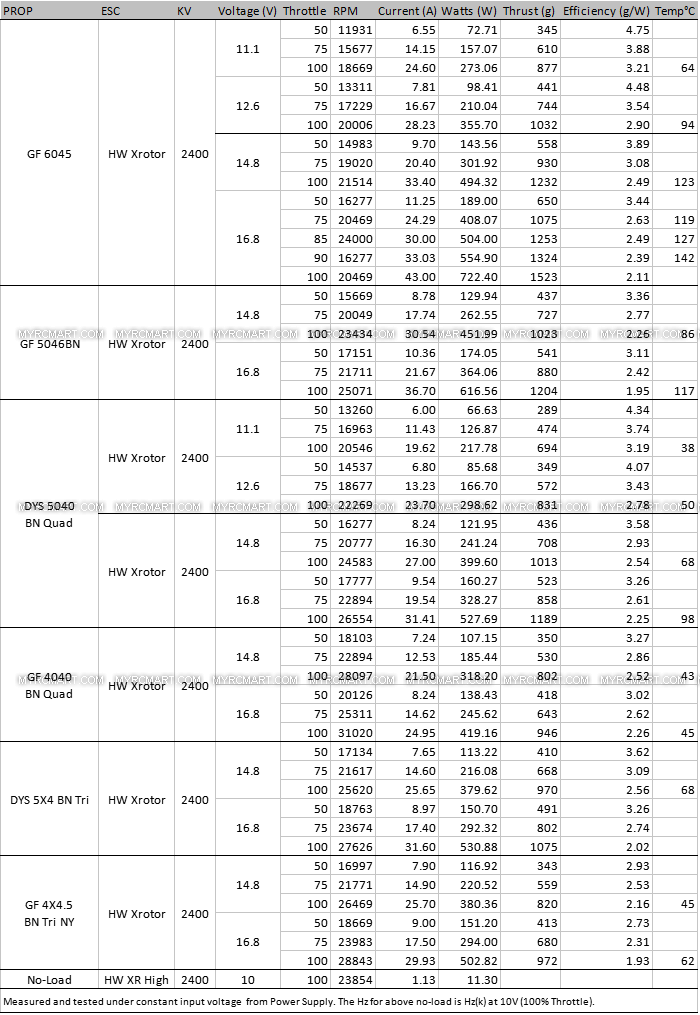

    • Suitable Battery: 3-4S Li-Po (refer to thrust test table and videos)



Includes:

  • 1 x RCX SE2205 V2 2400KV FPV Racing Edition Motor
  • 1 x Aluminium Locknuts M5 (Slip-Resistant) – CW
  • 1 x Circle Plate
  • 1 x Set of M3*5 Screw
